Wall Switch

Introduction

       With the progress of science and technology, more and more intelligent products have been used for monitoring the resources in daily life and pushing the cloud strategies and other value-added service scenarios. Along with the popularity of intelligent mobile terminal, intelligent wall switch has gradually become the priority of wall switches, which has expanded the use scenarios linked with smart home on the basis of remote control switches. In human-computer interaction, traditional mechanical buttons have been evolved to touch keys, wheel/slider control, and even proximity sensing scenarios.


Scheme Features

ØHighly flexible touch application solution, button + wheel + slider “All-in-one”, diversified interaction interfaces with a variety of combinations

ØRemote control operations, with proximity sensing distance of 10cm-30cm

ØBattery supply, low power operation, portable and convenient

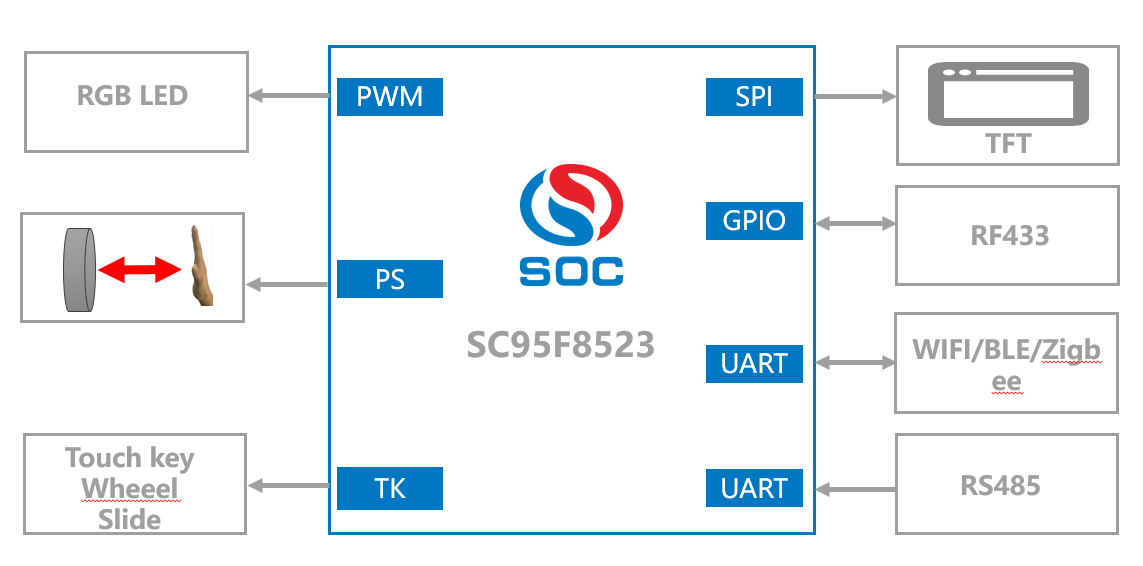

ØRich resources, integrating multiple interfaces with chips and satisfying connectivity application scenarios


Key Features

ØSC95F8523 super-high speed 8051

Ø32MHz basic frequency; 32K ROM 4K RAM

Ø8-ch 16Bit PWM

Ø11-ch 12Bit SAR ADC

Ø23 Touchkeys

Ø1 UART and 3 USCIs (SPI\IC\UART)

ØHardware multiplier and divider, hardware CRC

ØSupporting OTA upgrading

ØOperating voltage: 2.0V-5.5V


Applicable Models

ØSC95F852X/SC92F848X/SC92F846XB/SC95FS52X


Applicable Part Number

Add to compare

Compare(0)

export

9 total entries

  P/N PKG Type
ROM
(Byte)
BootLoader
RAM
(Byte)
Voltage
(V)
TK
(Max)
ADC
PWM
(with dead-time insertion)
PWM
UART
USCI
(UART/SPI/IIC)
SSI
(UART/SPI/IIC)
LCD/LED Driver
Touch Key Application type
Touch Key Performance
SC95F8521 SOP16 32K Built-in1K 4K 2.0~5.5V 13 12bit*6ch 16bit*5ch - 1 2 - - Spring Buttons/Touchless Buttons/Proximity Sensing 10V dynamic CS EFT 4KV ESD 6KV
SC95F8522 SOP20/TSSOP20 32K Built-in1K 4K 2.0~5.5V 17 12bit*7ch 16bit*8ch - 1 3 - - Spring Buttons/Touchless Buttons/Proximity Sensing 10V dynamic CS EFT 4KV ESD 6KV
SC95F8523 SOP28/TSSOP28 32K Built-in1K 4K 2.0~5.5V 23 12bit*11ch 12bit*8ch - 1 3 - - Spring Buttons/Touchless Buttons/Proximity Sensing 10V dynamic CS EFT 4KV ESD 6KV
SC92F8481 SOP16 16K Built-in0/1/2/4K 2K 2.0~5.5V 13 12bit*6ch - 10bit*4ch(Support complementary mode) 1 - 1 2COM Spring Buttons/Touchless Buttons/Proximity Sensing 10V dynamic CS /EFT 4KV
SC92F8482 SOP20/TSSOP20 16K Built-in0/1/2/4K 2K 2.0~5.5V 17 12bit*7ch - 10bit*6ch(Support complementary mode) 1 - 1 5COM Spring Buttons/Touchless Buttons/Proximity Sensing 10V dynamic CS /EFT 4KV
SC92F8483 SOP28/TSSOP28 16K Built-in0/1/2/4K 2K 2.0~5.5V 23 12bit*11ch - 10bit*6ch(Support complementary mode) 1 - 1 5COM Spring Buttons/Touchless Buttons/Proximity Sensing 10V dynamic CS /EFT 4KV
SC92F8461B SOP16 16K - 1K 2.4~5.5V 13 12bit*6ch - 10bit*4ch(Support complementary mode) 1 - 1 2COM Spring Buttons/Touchless Buttons/Proximity Sensing 10V dynamic CS /EFT 4KV
SC92F8462B SOP20/TSSOP20 16K - 1K 2.4~5.5V 17 12bit*7ch - 10bit*6ch(Support complementary mode) 1 - 1 5COM Spring Buttons/Touchless Buttons/Proximity Sensing 10V dynamic CS /EFT 4KV
SC92F8463B SOP28/TSSOP28 16K - 1K 2.4~5.5V 23 12bit*11ch - 10bit*6ch(Support complementary mode) 1 - 1 5COM Spring Buttons/Touchless Buttons/Proximity Sensing 10V dynamic CS /EFT 4KV
