92F General MCUs

    SC92F series general purpose MCU is a super-value industry-grade Flash microcontroller with 1T 8051 core, and its instruction sets are fully compatible with traditional 8051 series.

    This series is integrated with 4-32KB Flash ROM, up to 2KB SRAM, independent EEPROM, up to 46 GP I/Os (All I/Os features sink current drive capability), multiple external interruptible IOs, 3 16-bit timers, multi-channel 12-bit high-precision ADCs, multi- channel independent 8+2-bit PWM available for switching to different output pins, IO drive step control, internal high-precision (±1%) high-frequency 24/12/6/2MHz oscillator and ±4% precision low-frequency 128K oscillator, externally-connected crystal oscillator, UART, all-in-on composite serial interface (SSI) and other resources. To improve the reliability and simplify the customer-specific circuits, this series has internally integrated with 4 levels of optional low voltage reset (LVR), 2.4V ADC reference voltage, independent low-power consumption (WDT) and other highly reliable circuits. It is characterized with excellent anti-interference performance, which is suitable for IoT control, intelligent household appliances and smart home, chargers, power supply, model airplanes, interphones, wireless communications, game machines, and other industry control and consumer applications.

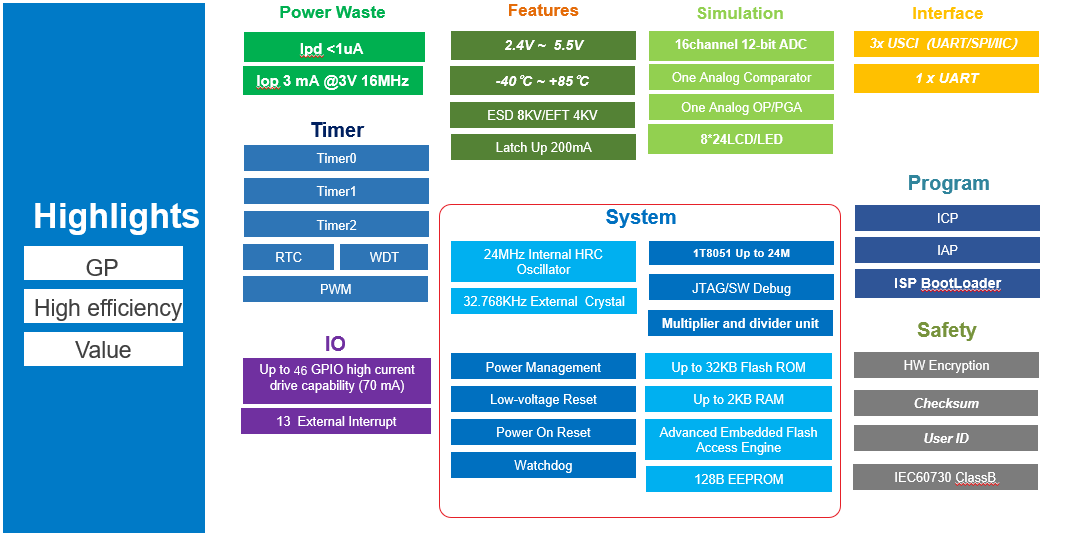

SC92F  GP.png

Download

Add to compare

Compare(0)

export

  P/N PKG Type ROM
(Byte)
RAM
(Byte)
IAP
(10K times)
BootLoader EEPROM
(100K times)
Voltage
(V)
1%IRC MHz Ipd
(uA)
UART SSI
(UART/SPI/IIC)
ADC PWM LCD/LED Driver EXT Crystal CMP

45 total entries

  P/N PKG Type ROM
(Byte)
RAM
(Byte)
IAP
(10K times)
BootLoader EEPROM
(100K times)
Voltage
(V)
1%IRC MHz Ipd
(uA)
UART SSI
(UART/SPI/IIC)
ADC PWM LCD/LED Driver EXT Crystal CMP
  P/N PKG Type ROM
(Byte)
RAM
(Byte)
IAP
(10K times)
BootLoader EEPROM
(100K times)
Voltage
(V)
1%IRC MHz Ipd
(uA)
UART SSI
(UART/SPI/IIC)
ADC PWM LCD/LED Driver EXT Crystal CMP
SC92F8003 TSSOP20/QFN20 16K 1K 0/0.5/1/16K - 128B 2.4~5.5V 16/8/4/1.33 <1 1 1 12bit*8ch 10bit*7ch - 2-16Mhz -
SC92F7250 SOP8 4K 256 0/0.5/1/4K - 128B 2.4~5.5V 16/8/4/1.33 <1 1 - 12bit*5ch 8bit*2ch - - -
SC92F7251 SOP16 4K 256 0/0.5/1/4K - 128B 2.4~5.5V 24/12/6/2 <1 1 - 12bit*7ch 8bit*4ch 4COM - -
SC92F7252 SOP20/TSSOP20/QFN20 4K 256 0/0.5/1/4K - 128B 2.4~5.5V 24/12/6/2 <1 1 - 12bit*9ch 8bit*6ch 5COM - -
SC92F7308B MSOP10 8K 256 0/0.5/1/8K - 128B 2.4~5.5V 12/6/2 <1 1 - 12bit*5ch 8bit*3ch 2COM - -
SC92F7309 TSSOP14 8K 256 0/0.5/1/8K - 128B 2.4~5.5V 12/6/2 <1 1 - 12bit*5ch 8bit*5ch 4COM - -
SC92F7350 SOP8 8K 256 0/0.5/1/8K - 128B 2.4~5.5V 24/12/6/2 <1 1 - 12bit*5ch 8bit*2ch - - -
SC92F7351 SOP16 8K 256 0/0.5/1/8K - 128B 2.4~5.5V 24/12/6/2 <1 1 - 12bit*7ch 8bit*4ch - - -
SC92F7352 SOP20/TSSOP20/QFN20 8K 256 0/0.5/1/8K - 128B 2.4~5.5V 24/12/6/2 <1 1 - 12bit*9ch 8bit*6ch 1/2Bias 5COM(SW) - -
SC92F7320 SOP8 8K 256 0/0.5/1/8K - 128B 2.4~5.5V 24/12/6/2 <1 1 - 12bit*5ch (8+2)bit*3ch - - -
SC92F7321 SOP16 8K 512 0/0.5/1/8K - 128B 2.4~5.5V 24/12/6/2 <1 1 - 12bit*7ch 8bit*4ch 1/2Bias 4COM(SW) - -
SC92F7322 SOP20/TSSOP20/QFN20 8K 512 0/0.5/1/8K - 128B 2.4~5.5V 24/12/6/2 <1 1 - 12bit*9ch (8+2)bit*3ch 1/2Bias 5COM(SW) - -
SC92F7323 SOP28/TSSOP28 8K 512 0/0.5/1/8K - 128B 2.4~5.5V 24/12/6/2 <1 1 - 12bit*11ch (8+2)bit*3ch 1/2Bias 5COM(SW) 32K -
SC92F7420 SOP8 16K 512 0/0.5/1/16K - 128B 2.4~5.5V 16/8/4/1.33 <1 - 2 12bit*5ch 8bit*2ch - - -
SC92F7421 SOP16 16K 512 0/0.5/1/16K - 128B 2.4~5.5V 16/8/4/1.33 <1 - 2 12bit*7ch 8bit*3ch 1/2Bias 4COM(SW) - -
SC92F7422 SOP20/TSSOP20/QFN20 16K 512 0/0.5/1/16K - 128B 2.4~5.5V 16/8/4/1.33 <1 - 2 12bit*9ch 8bit*6ch 1/2Bias 5COM(SW) - -
SC92F7423 SOP28/TSSOP28/QFN28 16K 512 0/0.5/1/16K - 128B 2.4~5.5V 16/8/4/1.33 <1 - 2 12bit*11ch 8bit*6ch 1/2Bias 5COM(SW) 32K -
SC92F7401 SOP16 16K 1K 0/0.5/1/16K - 128B 2.4~5.5V 16/8/4/1.33 <1 1 1 12bit*6ch 10bit*5ch(Support complementary mode) - 2-16Mhz -
SC92F7402 SOP20/TSSOP20 16K 1K 0/0.5/1/16K - 128B 2.4~5.5V 16/8/4/1.33 <1 1 1 12bit*8ch 10bit*7ch(Support complementary mode) - 2-16Mhz -
SC92F7461B SOP16 16K 1K 0/0.5/1/16K - 128B 2.4~5.5V 16/8/4/1.33 <1 1 1 12bit*6ch 10bit*4ch(Support complementary mode) 1/2Bias 2COM(SW) - -
SC92F7462B SOP20/TSSOP20 16K 1K 0/0.5/1/16K - 128B 2.4~5.5V 16/8/4/1.33 <1 1 1 12bit*7ch 10bit*6ch(Support complementary mode) 1/2Bias 5COM(SW) - -
SC92F7463B SOP28/TSSOP28 16K 1K 0/0.5/1/All - 128B 2.4~5.5V 16/8/4/1.33 <1 1 1 12bit*11ch 10bit*6ch(Support complementary mode) 1/2Bias 5COM(SW) 2-16Mhz -
SC92F7445B LQFP32 16K 1K 0/0.5/1/16K - 128B 2.4~5.5V 16/8/4/1.33 <1 1 1 12bit*12ch 12bit*3ch - - Y
SC92F7446B LQFP44 16K 1K 0/0.5/1/16K - 128B 2.4~5.5V 16/8/4/1.33 <1 1 1 12bit*17ch 12bit*8ch 8*24/6*26/5*27/4*28 32K Y
SC92F7447B LQFP48 16K 1K 0/0.5/1/16K - 128B 2.4~5.5V 16/8/4/1.33 <1 1 1 12bit*17ch 12bit*8ch 8*24/6*26/5*27/4*28 32K Y
SC92F7481 SOP16 16K 2K 0/1/2/16K Built-in0/1/2/4K 1KB 2.0~5.5V 32/16/8/2.66 2.5 1 1 12bit*6ch 10bit*4ch(Support complementary mode) 1/2Bias 2COM(SW) - -
SC92F7482 SOP20/TSSOP20 16K 2K 0/1/2/16K Built-in0/1/2/4K 1KB 2.0~5.5V 32/16/8/2.66 2.5 1 1 12bit*7ch 10bit*6ch(Support complementary mode) 1/2Bias 5COM(SW) - -
SC92F7483 SOP28/TSSOP28 16K 2K 0/1/2/16K Built-in0/1/2/4K 1KB 2.0~5.5V 32/16/8/2.66 2.5 1 1 12bit*11ch 10bit*6ch(Support complementary mode) 1/2Bias 5COM(SW) - -
SC92F7543 SOP28/TSSOP28 32K 2K 0/0.5/1/32K - 128B 2.4~5.5V 16/8/4/1.33 <1 1 1 12bit*12ch 12bit*3ch 8*15/4*19 - Y
SC92F7545 LQFP32 32K 2K 0/0.5/1/32K - 128B 2.4~5.5V 16/8/4/1.33 <1 1 1 12bit*12ch 12bit*3ch - - Y
SC92F7546 LQFP44 32K 2K 0/0.5/1/32K - 128B 2.4~5.5V 16/8/4/1.33 <1 1 1 12bit*17ch 12bit*8ch 8*24/6*26/5*27/4*28 32K Y
SC92F7547 LQFP48 32K 2K 0/0.5/1/32K - 128B 2.4~5.5V 16/8/4/1.33 <1 1 1 12bit*17ch 12bit*8ch 8*24/6*26/5*27/4*28 32K Y
SC92F7593 SOP28/TSSOP28 32K 2K 0/1/2/32K Built-in0/1/2/4K 1KB 2.0~5.5V 32/16/8/2.66 2.5 1 1 12bit*12ch 12bit*2ch 8*15/4*19 - Y
SC92F7595 LQFP32 32K 2K 0/1/2/32K Built-in0/1/2/4K 1KB 2.0~5.5V 32/16/8/2.66 2.5 1 1 12bit*12ch 12bit*2ch - - Y
SC92F7596 LQFP44 32K 2K 0/1/2/32K Built-in0/1/2/4K 1KB 2.0~5.5V 32/16/8/2.66 2.5 1 1 12bit*17ch 12bit*4ch 8*24/6*26/5*27/4*28 32K Y
SC92F7597 LQFP48 32K 2K 0/1/2/32K Built-in0/1/2/4K 1KB 2.0~5.5V 32/16/8/2.66 2.5 1 1 12bit*17ch 12bit*4ch 8*24/6*26/5*27/4*28 32K Y
SC92F73A1 SOP16 8K 1K 0/0.5/1/16K - 128B 2.4~5.5V 16/8/4/1.33 <1 1 1 12bit*6ch 10bit*4ch(Support complementary mode) 1/2Bias 2COM(SW) - -
SC92F73A2 SOP20/TSSOP20 8K 1K 0/0.5/1/16K - 128B 2.4~5.5V 16/8/4/1.33 <1 1 1 12bit*7ch 10bit*6ch(Support complementary mode) 1/2Bias 5COM(SW) - -
SC92F73A3 SOP28/TSSOP28 8K 1K 0/0.5/1/16K - 128B 2.4~5.5V 16/8/4/1.33 <1 1 1 12bit*11ch 10bit*6ch(Support complementary mode) 1/2Bias 5COM(SW) 2-16Mhz -
SC92F74A1 SOP16 16K 1K 0/0.5/1/16K - 128B 2.4~5.5V 16/8/4/1.33 <1 1 1 12bit*6ch 10bit*4ch(Support complementary mode) 1/2Bias 2COM(SW) - -
SC92F74A2 SOP20/TSSOP20 16K 1K 0/0.5/1/16K - 128B 2.4~5.5V 16/8/4/1.33 <1 1 1 12bit*7ch 10bit*6ch(Support complementary mode) 1/2Bias 5COM(SW) - -
SC92F74A3 SOP28/TSSOP28 16K 1K 0/0.5/1/16K - 128B 2.4~5.5V 16/8/4/1.33 <1 1 1 12bit*11ch 10bit*6ch(Support complementary mode) 1/2Bias 5COM(SW) 2-16Mhz -
SC92F74A5 LQFP32 16K 1K 0/0.5/1/16K - 128B 2.4~5.5V 16/8/4/1.33 <1 1 1 12bit*12ch 12bit*3ch - - Y
SC92F74A6 LQFP44 16K 1K 0/0.5/1/16K - 128B 2.4~5.5V 16/8/4/1.33 <1 1 1 12bit*17ch 12bit*8ch 8*24/6*26/5*27/4*28 32K Y
SC92F74A7 LQFP48 16K 1K 0/0.5/1/16K - 128B 2.4~5.5V 16/8/4/1.33 <1 1 1 12bit*17ch 12bit*8ch 8*24/6*26/5*27/4*28 32K Y
