92F Touch Key MCUs

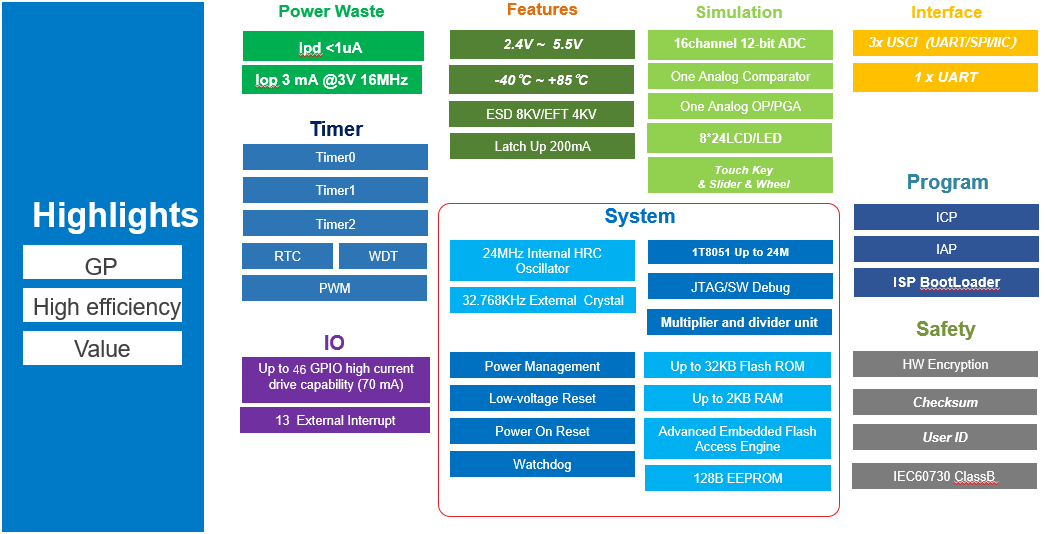

      SC92F series touchkey MCU is a super-value industry-grade Flash microcontroller with 1T 8051 core, and its instruction sets are fully compatible with traditional 8051 series.

      This series is integrated with 4~32KB Flash ROM, up to 2KB SRAM, independent EEPROM, up to 46 GP I/Os, 16 external interruptible IOs, 3 16-bit timers, 17-channel 12-bit high-precision ADCs, 1 analog comparator, 8-channel 12-bit PWM, IO drive step control (LED segment port), 1 16*16-bit hardware multiplier and divider, internal high-precision (±1%) high-frequency 16/8/4/1.33MHz oscillator and ±4% precision low-frequency 128K oscillator, externally-connected crystal oscillator, UART and other communication interfaces. To improve the reliability and simplify the customer-specific circuits, this series has internally integrated with 4 levels of optional low voltage reset (LVR), 2.4V ADC reference voltage, low-power consumption (WDT) and other highly reliable circuits.

      This series is built in up to 31-channel double-module high-sensitivity touchless capacitive touch circuit, which is able to realize touchless buttons, spring buttons, pad buttons and other touch applications, all of which have passed 10V dynamic CS tests. SinOne has provided highly flexible development software library and automatic debugging software to ease and intelligentialize the development.

    It is characterized with excellent anti-interference performance, which is suitable for IoT controls, intelligent household appliances and smart home, chargers, power supply, model airplanes, interphones, wireless communications, game machines, and other industry control and consumer applications.

SC92F  TK.png

Download

Add to compare

Compare(0)

export

  P/N PKG Type ROM
(Byte)
RAM
(Byte)
IAP
(10K times)
BootLoader EEPROM
(100K times)
Voltage
(V)
1%IRC MHz TK
(Max)
UART SSI
(UART/SPI/IIC)
ADC PWM LCD/LED Driver Touch Key Application type Touch Key Performance

39 total entries

  P/N PKG Type ROM
(Byte)
RAM
(Byte)
IAP
(10K times)
BootLoader EEPROM
(100K times)
Voltage
(V)
1%IRC MHz TK
(Max)
UART SSI
(UART/SPI/IIC)
ADC PWM LCD/LED Driver Touch Key Application type Touch Key Performance
  P/N PKG Type ROM
(Byte)
RAM
(Byte)
IAP
(10K times)
BootLoader EEPROM
(100K times)
Voltage
(V)
1%IRC MHz TK
(Max)
UART SSI
(UART/SPI/IIC)
ADC PWM LCD/LED Driver Touch Key Application type Touch Key Performance
SC92F8370 SOP8 8K 384 0/0.5/1/8K - 128B 2.4~5.5V 12/6/2 5 - 1 - 8bit*1ch - Spring Buttons/Touchless Buttons/Proximity Sensing 10V dynamic CS /EFT 4KV
SC92F8371 SOP16 8K 384 0/0.5/1/8K - 128B 2.4~5.5V 12/6/2 12 - 1 - 8bit*2ch - Spring Buttons/Touchless Buttons/Proximity Sensing 10V dynamic CS /EFT 4KV
SC92F8372 SOP20/TSSOP20 8K 384 0/0.5/1/8K - 128B 2.4~5.5V 12/6/2 16 - 1 - 8bit*4ch - Spring Buttons/Touchless Buttons/Proximity Sensing 10V dynamic CS /EFT 4KV
SC92F8361B SOP16 8K 1K 0/0.5/1/8K - 128B 2.4~5.5V 12/6/2 13 1 1 12bit*6ch 10bit*4ch(Support complementary mode) 2COM Spring Buttons/Touchless Buttons/Proximity Sensing 10V dynamic CS /EFT 4KV
SC92F8362B SOP20/TSSOP20 8K 1K 0/0.5/1/8K - 128B 2.4~5.5V 12/6/2 17 1 1 12bit*7ch 10bit*6ch(Support complementary mode) 5COM Spring Buttons/Touchless Buttons/Proximity Sensing 10V dynamic CS /EFT 4KV
SC92F8363B SOP28/TSSOP28 8K 1K 0/0.5/1/8K - 128B 2.4~5.5V 12/6/2 23 1 1 12bit*11ch 10bit*6ch(Support complementary mode) 5COM Spring Buttons/Touchless Buttons/Proximity Sensing 10V dynamic CS /EFT 4KV
SC92F84H2 SOP20/TSSOP20 16K 1K 0/0.5/1/16K - 128B 2.4~5.5V 12/6/2 14 1 1 12bit*15ch - - Spring Buttons/Touchless Buttons/Proximity Sensor/ 10V dynamic CS /EFT 4KV
SC92F84H9 SOP24/TSSOP24 16K 1K 0/0.5/1/16K - 128B 2.4~5.5V 12/6/2 18 1 1 12bit*19ch 16bit*3ch - Spring Buttons/Touchless Buttons/Proximity Sensor/ 10V dynamic CS /EFT 4KV
SC92F84H3 SOP28/TSSOP28 16K 1K 0/0.5/1/16K - 128B 2.4~5.5V 12/6/2 20 1 1 12bit*21ch 16bit*6ch - Spring Buttons/Touchless Buttons/Proximity Sensor/ 10V dynamic CS /EFT 4KV
SC92F8461B SOP16 16K 1K 0/0.5/1/16K - 128B 2.4~5.5V 12/6/2 13 1 1 12bit*6ch 10bit*4ch(Support complementary mode) 2COM Spring Buttons/Touchless Buttons/Proximity Sensing 10V dynamic CS /EFT 4KV
SC92F8462B SOP20/TSSOP20 16K 1K 0/0.5/1/16K - 128B 2.4~5.5V 12/6/2 17 1 1 12bit*7ch 10bit*6ch(Support complementary mode) 5COM Spring Buttons/Touchless Buttons/Proximity Sensing 10V dynamic CS /EFT 4KV
SC92F8463B SOP28/TSSOP28 16K 1K 0/0.5/1/16K - 128B 2.4~5.5V 12/6/2 23 1 1 12bit*11ch 10bit*6ch(Support complementary mode) 5COM Spring Buttons/Touchless Buttons/Proximity Sensing 10V dynamic CS /EFT 4KV
SC92F8445B LQFP32 16K 1K 0/0.5/1/16K - 128B 2.4~5.5V 16/8/4/1.33 22 1 1 12bit*12ch 12bit*3ch - Spring Buttons/Touchless Buttons/Proximity Sensing 10V dynamic CS /EFT 4KV
SC92F8446B LQFP44 16K 1K 0/0.5/1/16K - 128B 2.4~5.5V 16/8/4/1.33 31 1 1 12bit*17ch 12bit*8ch 8*24/6*26/5*27/4*28 Spring Buttons/Touchless Buttons/Proximity Sensing 10V dynamic CS /EFT 4KV
SC92F8447B LQFP48 16K 1K 0/0.5/1/16K - 128B 2.4~5.5V 16/8/4/1.33 31 1 1 12bit*17ch 12bit*8ch 8*24/6*26/5*27/4*28 Spring Buttons/Touchless Buttons/Proximity Sensing 10V dynamic CS /EFT 4KV
SC92F8542 SOP20/TSSOP20 32K 2K 0/0.5/1/32K - 128B 2.4~5.5V 16/8/4/1.33 13 1 1 12bit*9ch 12bit*4ch - Spring Buttons/Touchless Buttons/Proximity Sensing 10V dynamic CS /EFT 4KV
SC92F8543 SOP28/TSSOP28 32K 2K 0/0.5/1/32K - 128B 2.4~5.5V 16/8/4/1.33 22 1 1 12bit*12ch 12bit*3ch 4*19/8*15 Spring Buttons/Touchless Buttons/Proximity Sensing 10V dynamic CS /EFT 4KV
SC92F8545 LQFP32 32K 2K 0/0.5/1/32K - 128B 2.4~5.5V 16/8/4/1.33 22 1 1 16bit*12ch 12bit*3ch - Spring Buttons/Touchless Buttons/Proximity Sensing 10V dynamic CS /EFT 4KV
SC92F8546 LQFP44 32K 2K 0/0.5/1/32K - 128B 2.4~5.5V 16/8/4/1.33 31 1 1 12bit*17ch 12bit*8ch 8*24/6*26/5*27/4*28 Spring Buttons/Touchless Buttons/Proximity Sensing 10V dynamic CS /EFT 4KV
SC92F8547 LQFP48 32K 2K 0/0.5/1/32K - 128B 2.4~5.5V 16/8/4/1.33 17 1 1 12bit*8ch 12bit*8ch 8*24/6*26/5*27/4*28 Spring Buttons/Touchless Buttons/Proximity Sensing 10V dynamic CS /EFT 4KV
SC92F8481 SOP16 16K 2K 0/1/2/16K Built-in0/1/2/4K 1KB 2.0~5.5V 32/16/8/2.66 13 1 1 12bit*6ch 10bit*4ch(Support complementary mode) 2COM Spring Buttons/Touchless Buttons/Proximity Sensing 10V dynamic CS /EFT 4KV
SC92F8482 SOP20/TSSOP20 16K 2K 0/1/2/16K Built-in0/1/2/4K 1KB 2.0~5.5V 32/16/8/2.66 17 1 1 12bit*7ch 10bit*6ch(Support complementary mode) 5COM Spring Buttons/Touchless Buttons/Proximity Sensing 10V dynamic CS /EFT 4KV
SC92F8483 SOP28/TSSOP28 16K 2K 0/1/2/16K Built-in0/1/2/4K 1KB 2.0~5.5V 32/16/8/2.66 23 1 1 12bit*11ch 10bit*6ch(Support complementary mode) 5COM Spring Buttons/Touchless Buttons/Proximity Sensing 10V dynamic CS /EFT 4KV
SC92F8593 SOP28/TSSOP28 32K 1K 0/1/2/32K Built-in0/1/2/4K 1KB 2.0~5.5V 32/16/8/2.66 22 1 1 12bit*12ch 12bit*2ch 4*19/8*15 Spring Buttons/Touchless Buttons/Proximity Sensing 10V dynamic CS /EFT 4KV
SC92F8595 LQFP32 32K 2K 0/1/2/32K Built-in0/1/2/4K 1KB 2.0~5.5V 32/16/8/2.66 22 1 1 12bit*12ch 12bit*2ch - Spring Buttons/Touchless Buttons/Proximity Sensing 10V dynamic CS /EFT 4KV
SC92F8596 LQFP44 32K 2K 0/1/2/32K Built-in0/1/2/4K 1KB 2.0~5.5V 32/16/8/2.66 31 1 1 12bit*17ch 12bit*4ch 8*24/6*26/5*27/4*28 Spring Buttons/Touchless Buttons/Proximity Sensing 10V dynamic CS /EFT 4KV
SC92F8597 LQFP48 32K 2K 0/1/2/32K Built-in0/1/2/4K 1KB 2.0~5.5V 32/16/8/4 31 1 1 12bit*17ch 12bit*4ch 8*24/6*26/5*27/4*28 Spring Buttons/Touchless Buttons/Proximity Sensing 10V dynamic CS /EFT 4KV
SC92F83A1 SOP16 8K 1K 0/0.5/1/8K - 128B 2.4~5.5V 12/6/2 13 1 1 12bit*6ch 10bit*4ch(Support complementary mode) 2COM Spring Buttons/Touchless Buttons/Proximity Sensing 3V static CS/10V dynamic CS/EFT 4KV
SC92F83A2 SOP20/TSSOP20 8K 1K 0/0.5/1/8K - 128B 2.4~5.5V 12/6/2 17 1 1 12bit*7ch 10bit*6ch(Support complementary mode) 5COM Spring Buttons/Touchless Buttons/Proximity Sensing 3V static CS/10V dynamic CS/EFT 4KV
SC92F83A3 SOP28/TSSOP28 8K 1K 0/0.5/1/8K - 128B 2.4~5.5V 12/6/2 23 1 1 12bit*11ch 10bit*6ch(Support complementary mode) 5COM Spring Buttons/Touchless Buttons/Proximity Sensing 3V static CS/10V dynamic CS/EFT 4KV
SC92F84A1 SOP16 16K 1K 0/0.5/1/16K - 128B 2.4~5.5V 12/6/2 13 1 1 12bit*6ch 10bit*4ch(Support complementary mode) 2COM Spring Buttons/Touchless Buttons/Proximity Sensing 3V static CS/10V dynamic CS/EFT 4KV
SC92F84A2 SOP20/TSSOP20 16K 1K 0/0.5/1/16K - 128B 2.4~5.5V 12/6/2 17 1 1 12bit*7ch 10bit*6ch(Support complementary mode) 5COM Spring Buttons/Touchless Buttons/Proximity Sensing 3V static CS/10V dynamic CS/EFT 4KV
SC92F84A3 SOP28/TSSOP28/QFN28 16K 1K 0/0.5/1/16K - 128B 2.4~5.5V 12/6/2 23 1 1 12bit*11ch 10bit*6ch(Support complementary mode) 5COM Spring Buttons/Touchless Buttons/Proximity Sensing 3V static CS/10V dynamic CS/EFT 4KV
SC92F84A5 LQFP32 16K 1K 0/0.5/1/16K - 128B 2.4~5.5V 16/8/4/1.33 22 1 1 12bit*12ch 12bit*3ch - Spring Buttons/Touchless Buttons/Proximity Sensing 3V static CS/10V dynamic CS/EFT 4KV
SC92F84A6 LQFP44 16K 1K 0/0.5/1/16K - 128B 2.4~5.5V 16/8/4/1.33 31 1 1 12bit*17ch 12bit*8ch 8*24/6*26/5*27/4*28 Spring Buttons/Touchless Buttons/Proximity Sensing 3V static CS/10V dynamic CS/EFT 4KV
SC92F84A7 LQFP48 16K 1K 0/0.5/1/16K - 128B 2.4~5.5V 16/8/4/1.33 31 1 1 12bit*17ch 12bit*8ch 8*24/6*26/5*27/4*28 Spring Buttons/Touchless Buttons/Proximity Sensing 3V static CS/10V dynamic CS/EFT 4KV
SC92F8411 SOP16 16K 1K 0/0.5/1/16K - 128B 2.4~5.5V 24/12/6/2 13 1 1 12bit*6ch 10bit*4ch(Support complementary mode) 2COM Springloaded Buttons/Touchless Buttons/Proximity S 10V dynamic CS /EFT 4KV
SC92F8412 SOP20/TSSOP20 16K 1K 0/0.5/1/16K - 128B 2.4~5.5V 24/12/6/2 17 1 1 12bit*7ch 10bit*6ch(Support complementary mode) 5COM Spring Buttons/Touchless Buttons/Proximity Sensing 10V dynamic CS /EFT 4KV
SC92F8413 SOP28/TSSOP28 16K 1K 0/0.5/1/16K - 128B 2.4~5.5V 24/12/6/2 23 1 1 12bit*11ch 10bit*6ch(Support complementary mode) 5COM Spring Buttons/Touchless Buttons/Proximity Sensing 10V dynamic CS /EFT 4KV
Select all
Title Describe Version Language Type Size Updated Download
datasheet V0.1 English PDF 1.96MB 2022-08-15 Download
datasheet V0.1 English PDF 2.18MB 2021-10-28 Download
datasheet V0.1 English PDF 2.19MB 2021-11-05 Download
datasheet V0.1 English PDF 2.46MB 2022-02-09 Download
datasheet V0.1 English PDF 2.38MB 2022-07-04 Download
datasheet V0.3 English PDF 2.44MB 2023-10-20 Download
datasheet V0.1 English PDF 2.17MB 2022-09-29 Download
datasheet V0.1 English PDF 2.23MB 2022-08-15 Download
datasheet V0.1 English PDF 2.08MB 2023-09-08 Download
Select all
Title Describe Version Language Type Size Updated Download
The key points of the MCU PCB design of SailOne touch button MCU are introduced V1.0 English PDF 1.62MB 2023-02-02 Download
Select all
Title Describe Version Language Type Size Updated Download
The key points of using the 92F series products are introduced V1.0 English PDF 1.27MB 2023-02-02 Download
Select all
Title Describe Version Language Type Size Updated Download
selection guide V1.0 English PDF 4.47MB 2022-04-06 Download
Select all
Title Describe Version Language Type Size Updated Download
rar 21.97KB 2024-01-26 Download
rar 25.75KB 2024-01-26 Download
zip 32.04KB 2024-01-26 Download
rar 26.63KB 2024-01-26 Download
rar 26.82KB 2024-01-26 Download
rar 25.79KB 2024-01-26 Download
rar 26.88KB 2024-01-26 Download
rar 26.73KB 2024-01-26 Download
rar 28.12KB 2024-01-26 Download
rar 31.78KB 2024-01-26 Download
rar 31.86KB 2024-01-26 Download
rar 33.16KB 2024-01-26 Download
rar 27.58KB 2024-01-26 Download
Select all
Title Describe Version Language Type Size Updated Download
LB101X Touch key evaluation board document English rar 40.83MB 2022-02-18 Download
SDK101X learning board document English rar 36.54MB 2022-02-18 Download
LB1213 wheel and slider evaluation board user manual V1.0 English PDF 171.39KB 2022-08-12 Download
LB1213 Wheel and slider evaluation board Document English rar 77.11MB 2022-08-12 Download
Select all
Title Describe Version Language Type Size Updated Download
