Introduction: SinOne LB1214 proximity sensing evaluation development board is designed for the 95FS52x proximity sensing series MCUs. The SAIYUAN 95FS52x series integrates capacitive proximity sensing and touch detection circuits, featuring 32Kbytes Flash ROM, 4Kbytes RAM, 1 UART, 3 USCI (UART/SPI/I2C), 11 channels of 12-bit high-precision ADC, and 8 channels of 16-bit PWM. It provides a complete HMI solution, enabling features like screen wake-up, gesture control, touch display, and function control.

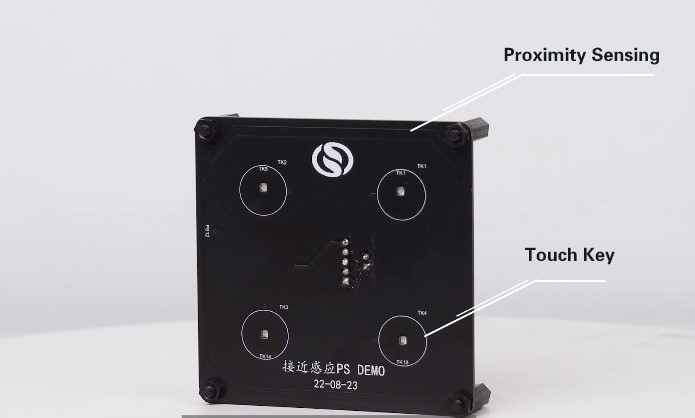

The LB1214 evaluation board includes 1 proximity sensor, 4 touch buttons, and 4 LED lights, allowing for simultaneous evaluation and testing of both proximity sensing and touch functions, facilitating quick development for customers.

Function Description:

1.  Proximity Sensing Function: When a hand approaches the development board, the four LED lights illuminate, waking the board.

2.  Touch Button Function: After the board is awakened, touching any button will turn the corresponding LED light on or off.
