Air Conditioner

Introduction

       As an essential electrical appliance in modern family, air conditioner is expected to be more and more intelligent in addition to basic temperature regulation functions, such as human body proximity sensing for screen light-up, wind direction and speed adjustment, which has gradually become the innovative points of products. The perfect SinOne MCU platform has not only provided high-performance MCU for the touch panel of air conditioner, but also proximity sensing products for constantly creating new values for customers.


Scheme Features

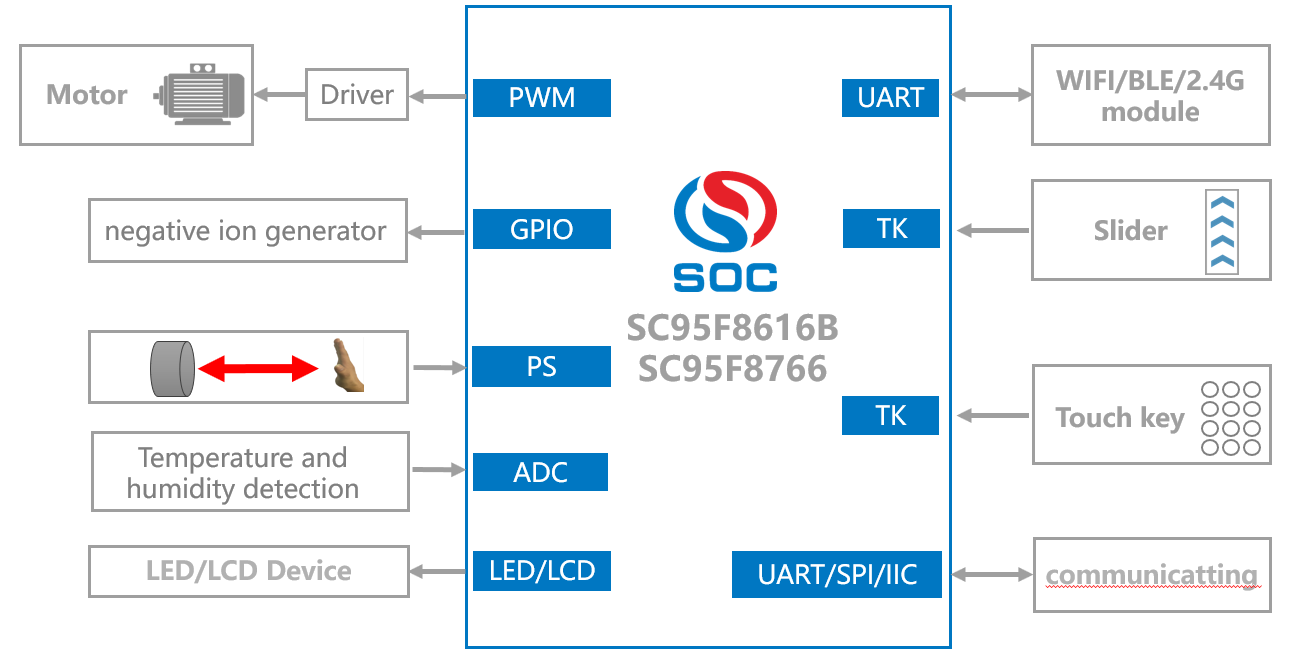

ØHigh integration, adopting master + touch + display “Three-in-one” solution

ØHigh-performance and high-sensitivity Touchkey, supporting up to 31 Touchkeys and passing 10V dynamic CS

ØTouchkey, supporting wheel/slider operations and featuring diversified design and graceful appearance

ØMulti-channel PWM, available for real-time control of multiple motors

ØProximity sensing function, available for human body proximity detection

ØVarious interfaces, available for connecting various wireless modules or other peripherals

ØRich resources, supporting OTA upgrading


Key Features

ØROM:128K/64K/32K

ØSupporting up to 31 high-sensitivity Touchkeys and passing 10V dynamic CS

ØTouchkey, supporting wheel/slider operations

ØOne independent UART, up to 6 USCIs (UART/SPI/IIC)

ØBuilt-in 4K Bootloader, supporting OTA upgrading

ØPWM:16bit/14ch;12bit/8ch

ØLCD/LED drive:8*28/6*26/5*27/4*28

Ø20cm proximity detection


Applicable Models

ØSC95F876X/SC95F861XB



Applicable Part Number

Add to compare

Compare(0)

export

2 total entries

  P/N PKG Type
ROM
(Byte)
RAM
(Byte)
IAP
(100K times)
BootLoader
Voltage
(V)
2%IRC MHz
(32K Autocorrection)
TK
(Max)
ADC
PWM
(with dead-time insertion)
UART
USCI
(UART/SPI/IIC)
LCD/LED Driver
Touch Key Application type
Touch Key Performance
SC95F8616B LQFP44 64K 8K 0/1/2/64K Built-in0/1/2/4K 2.0~5.5V 32/16/8/4 31 12bit*17ch 16bit*12ch 1 5 8*24/6*26/5*27/4*28 Spring Buttons/Touchless Buttons/Proximity Sensing 10V dynamic CS /EFT 4KV
SC95F8766 LQFP44 128K 8K 0/1/2/128K Built-in0/1/2/4K 2.0~5.5V 32/16/8/4 31 12bit*17ch 16bit*12ch 1 5 8*24/6*26/5*27/4*28 Spring Buttons/Touchless Buttons/Proximity Sensing 10V dynamic CS /EFT 4KV
