95F General MCUs

SC95F series general purpose MCU is an industry-grade Flash microcontroller with enhanced 1T 8051 core, and its instruction sets are downward compatible with standard 80C51 series. Super-high speed 1T8051 CPU core runs with the frequency up to 32MHz. Under the same working frequency, its execution speed has doubled other 1T8051; besides, internally-integrated IC hardware multiplier and divider as well double DPTR data pointer are used for speeding up the data operation and movement speed. Neither hardware multiplier nor divider occupies CPU cycle with its operation executed by hardware and the speed being dozens of times faster than that executed by software; Double DPTR data pointer can be used to accelerate data storage and movement.

SC95F series general purpose MCU features high performance and high reliability with a wide operating voltage range of 2.0V - 5.5V and ultra-wide operating temperature range of -40 - 105 and has a strong capacity of 6KV ESD 4KV EFT. It adopts industry-leading eFlash process with Flash writing more than 100,000 times, which can be saved for 100 years at room temperature.

SC95F series general purpose MCU is a built in low-power watchdog timer (WDT) with 4 levels of optional low voltage reset (LVR) function and system clock monitoring function, featuring low power consumption capability in operation and power-down mode. In power-down mode, the typical power consumption in 5V is about 2.5uA; in normal working mode, the typical value in 5V is about 5.2mA@32M.

SC95F series general purpose MCU also integrates super-rich hardware resources: maximum 128 Kbytes Flash ROM, 8 Kbytes SRAM, 1 Kbytes EEPROM, built-in BootLoader; rich GPIO, multi-channel external interruption, several 16-bit timers, built-in analog comparator, 12bit complementary PWM with dead-time insertion and internal ±2% high-precision high-frequency 32/16/8/4MHz oscillator and ±4% precision low-frequency 32kHz oscillator, 32.768kHz external crystal oscillator, etc. Besides, SC95F series general purpose MCU also internally integrates 12-bit high-precision 1M high-speed ADC with 1.024V/2.048V ADC reference voltage function. So many functions are integrated in MCU, reducing the quantity of peripheral components of the system and saving the space of circuit board and system costs.

SC95F series general purpose MCU is convenient for developing and debugging, featuring In-System Programing (ISP), In-Circuit Programing (ICP) and In-Application Programing (IAP). It is allowed to debug and upgrade the program memory directly on the circuit board even when the chip is working or powered on.

SC95F series general purpose MCU features excellent anti-interference performance, high reliability, large memory, multiple interfaces, low power consumption and high efficiency, which is highly suitable for applications in intelligent household appliances, industrial control, Internet of Things (IoT), medical industry, wearable devices and consumer goods, etc.

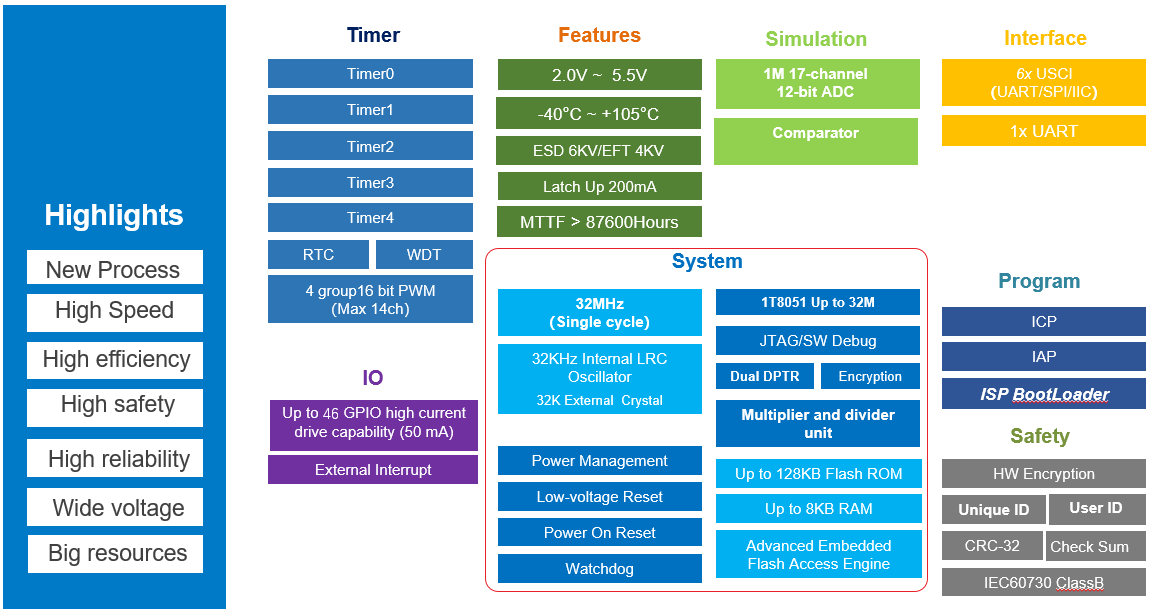

SC95F  GP.png

Download

Add to compare

Compare(0)

export

  P/N PKG Type ROM
(Byte)
RAM
(Byte)
IAP
(100K times)
BootLoader EEPROM
(100K times)
Voltage
(V)
2%IRC MHz
(32K Autocorrection)
Ipd
(uA)
UART USCI
(UART/SPI/IIC)
ADC PWM
(with dead-time insertion)
LCD/LED Driver EXT Crystal CMP

24 total entries

  P/N PKG Type ROM
(Byte)
RAM
(Byte)
IAP
(100K times)
BootLoader EEPROM
(100K times)
Voltage
(V)
2%IRC MHz
(32K Autocorrection)
Ipd
(uA)
UART USCI
(UART/SPI/IIC)
ADC PWM
(with dead-time insertion)
LCD/LED Driver EXT Crystal CMP
  P/N PKG Type ROM
(Byte)
RAM
(Byte)
IAP
(100K times)
BootLoader EEPROM
(100K times)
Voltage
(V)
2%IRC MHz
(32K Autocorrection)
Ipd
(uA)
UART USCI
(UART/SPI/IIC)
ADC PWM
(with dead-time insertion)
LCD/LED Driver EXT Crystal CMP
SC95F7521 SOP16 32K 4K 0/1/2/32K Built-in1K 1KB 2.0~5.5V 32/16/8/4  24/12/6/3 2.5 1 2 12bit*6ch 16bit*5ch - - -
SC95F7522 SOP20/TSSOP20 32K 4K 0/1/2/32K Built-in1K 1KB 2.0~5.5V 32/16/8/4  24/12/6/3 2.5 1 3 12bit*7ch 16bit*8ch - - -
SC95F7523 SOP28/TSSOP28 32K 4K 0/1/2/32K Built-in1K 1KB 2.0~5.5V 32/16/8/4  24/12/6/3 2.5 1 3 12bit*11ch 16bit*8ch - 32K -
SC95F7571 SOP16 32K 4K 0/1/2/32K Built-in0/1/2/4K 6KB 2.0~5.5V 32/16/8/4 2.5 1 2 12bit*8ch 12bit*5ch - - -
SC95F7572 SOP20/TSSOP20/QFN20 32K 4K 0/1/2/32K Built-in0/1/2/4K 6KB 2.0~5.5V 32/16/8/4 2.5 1 3 12bit*9ch 12bit*6ch - - -
SC95F7573 SOP28/TSSOP28/QFN28 32K 4K 0/1/2/32K Built-in0/1/2/4K 6KB 2.0~5.5V 32/16/8/4 2.5 1 3 12bit*13ch 12bit*8ch - 2-16Mhz -
SC95F7575 LQFP32/QFN32 32K 4K 0/1/2/32K Built-in0/1/2/4K 6KB 2.0~5.5V 32/16/8/4 2.5 1 3 12bit*13ch 12bit*8ch - 2-16Mhz -
SC95F7671 SOP16 64K 4K 0/1/2/64K Built-in0/1/2/4K 6KB 2.0~5.5V 32/16/8/4 2.5 1 2 12bit*8ch 12bit*5ch - - -
SC95F7672 SOP20/TSSOP20/QFN20 64K 4K 0/1/2/64K Built-in0/1/2/4K 6KB 2.0~5.5V 32/16/8/4 2.5 1 3 12bit*9ch 12bit*6ch - - -
SC95F7673 SOP28/TSSOP28/QFN28 64K 4K 0/1/2/64K Built-in0/1/2/4K 6KB 2.0~5.5V 32/16/8/4 2.5 1 3 12bit*13ch 12bit*8ch - 2-16Mhz -
SC95F7675 LQFP32/QFN32 64K 4K 0/1/2/64K Built-in0/1/2/4K 6KB 2.0~5.5V 32/16/8/4 2.5 1 3 12bit*13ch 12bit*8ch - 2-16Mhz -
SC95F7612B SOP20/TSSOP20/QFN20 64K 8K 0/1/2/64K Built-in0/1/2/4K 6KB 2.0~5.5V 32/16/8/4 2.5 1 2 12bit*9ch 16bit*6ch - - Y
SC95F7613B SOP28/TSSOP28 64K 8K 0/1/2/64K Built-in0/1/2/4K 6KB 2.0~5.5V 32/16/8/4 2.5 1 4 12bit*9ch 16bit*8ch 4*16 - Y
SC95F7615B LQFP32/QFN32 64K 8K 0/1/2/64K Built-in0/1/2/4K 6KB 2.0~5.5V 32/16/8/4 2.5 1 4 12bit*9ch 16bit*12ch 4*16 32K Y
SC95F7616B LQFP44 64K 8K 0/1/2/64K Built-in0/1/2/4K 6KB 2.0~5.5V 32/16/8/4 2.5 1 5 12bit*17ch 16bit*12ch 8*24/6*26/5*27/4*28 32K Y
SC95F7617B LQFP48/QFN48 64K 8K 0/1/2/64K Built-in0/1/2/4K 6KB 2.0~5.5V 32/16/8/4 2.5 1 6 12bit*17ch 16bit*14ch 8*24/6*26/5*27/4*28 32K Y
SC95F7613 SOP28/TSSOP28 64K 4K 1/2/4/64K Built-in1K - 2.0~5.5V 32/16/8/4  24/12/6/3 2.5 1 3 12bit*9ch 12bit*4ch 4*16 - Y
SC95F7615 LQFP32/QFN32 64K 4K 1/2/4/64K Built-in1K - 2.0~5.5V 32/16/8/4  24/12/6/3 2.5 1 3 12bit*9ch 12bit*8ch 4*16 32K Y
SC95F7616 LQFP44 64K 4K 1/2/4/64K Built-in1K - 2.0~5.5V 32/16/8/4  24/12/6/3 2.5 1 3 12bit*17ch 12bit*8ch 8*24/6*26/5*27/4*28 32K Y
SC95F7617 LQFP48/QFN48 64K 4K 1/2/4/All Built-in1K 1KB 2.0~5.5V 32/16/8/4 2.5 1 3 12bit*17ch 12bit*8ch 8*24/6*26/5*27/4*28 32K Y
SC95F7763 SOP28/TSSOP28 128K 8K 0/1/2/128K Built-in0/1/2/4K 6KB 2.0~5.5V 32/16/8/4 2.5 1 4 12bit*9ch 16bit*8ch 4*16 - Y
SC95F7765 LQFP32/QFN32 128K 8K 0/1/2/128K Built-in0/1/2/4K 6KB 2.0~5.5V 32/16/8/4 2.5 1 4 12bit*9ch 16bit*12ch 4*16 32K Y
SC95F7766 LQFP44 128K 8K 0/1/2/128K Built-in0/1/2/4K 6KB 2.0~5.5V 32/16/8/4 2.5 1 5 12bit*17ch 16bit*12ch 8*24/6*26/5*27/4*28 32K Y
SC95F7767 LQFP48/QFN48 128K 8K 0/1/2/128K Built-in0/1/2/4K 6KB 2.0~5.5V 32/16/8/4 2.5 1 6 12bit*17ch 16bit*14ch 8*24/6*26/5*27/4*28 32K Y
