SC95F7572

Operating Conditions
l   Voltage Range: 2.0V~5.5V
l  Temperature Range: -40℃ ~ +105℃



CPU
l  Super-high-speed 1T 8051 core
l  The instruction set compatible with 8051
l  The execution speed is about twice that of other 1T 8051
l  Double data pointers (DPTRs)



Flash ROM
l  32 Kbytes Flash ROM
l  Can be rewritten 100,000 times
l   APROM area allowed IAP operation in Flash can be set to 0K/1K/2K/All APROM by Code Option.



LDROM
l  BootLoader code memory
l  LDROM area can be set to 0K/1K/2K/4K by Code Option



EEPROM
l  Independent 6K bytes EEPROM
l  Can be rewritten 100,000 times, has more than 100-year preservation life in the ambient temperature of 25℃



SRAM
l  256 bytes on-chip direct access RAM
l  4 Kbytes on-chip Indirect access RAM
l  PWM RAM



Flash Programming and Emulation
l   2-wire JTAG programming and emulation interface



System clock (fSYS)
l  Built-in high frequency 32 MHz oscillator (fHRC)

n  can be selected and set by the programmer as: 32/16/8/4 MHz@2.0~5.5V

n  Frequency Error: Within ±1% @ -40 ~ 105℃ @ 2.0 ~ 5.5V



Built-in high-frequency crystal oscillator circuit:
l  Can be connected with external 2~16MHz oscillator
l  As the system clock source, fSYS has the programmer option to use one of the four frequency splits of external crystal / 1/2/4/8
l  The built-in system clock monitoring circuit. If you select a crystal oscillator as the system clock source and the crystal oscillator circuit stops, the system clock source automatically switches to the built-in HRC and stays in this state until reset next time



Built-in low-frequency 32 kHz oscillator (LRC):
l  used as the clock source for Base Timer and wake up STOP
l  used as the clock sourse for WDT
l   Frequency Error: After the register correction, within ±4% @ -20 ~ 85℃ @ 4.0 ~ 5.5V



Low-voltage Reset (LVR)
l   4 options of reset voltage: 4.3/3.7/ 2.9/1.9V
l  the default value can be selected by the Code Option



Interrupts (INT)
l  Timer 0~Timer 4, INT0~2, ADC, PWM, UART, USCI0~2, Base Timer 15 interrupt sources
l  External interrupt contains 3 interrupt vectors, 13 interrupt ports. All can set up rising edge, falling edge, dual edge interrupt
l  Two-level interrupt priority capability



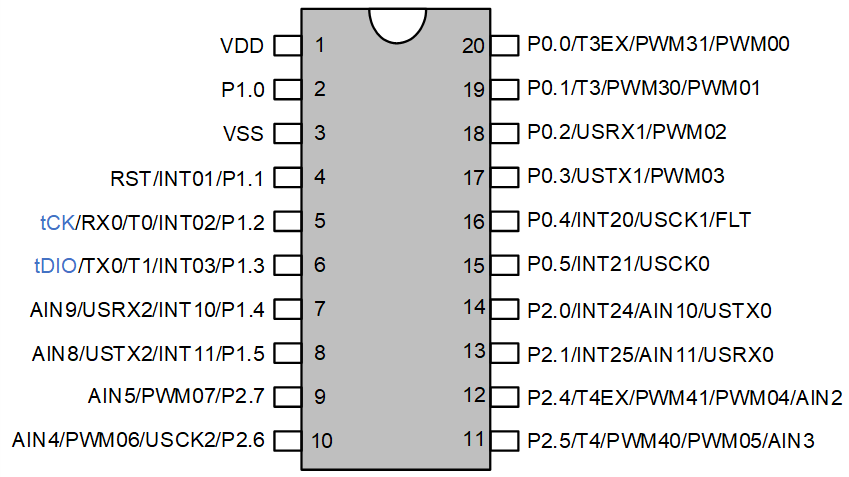

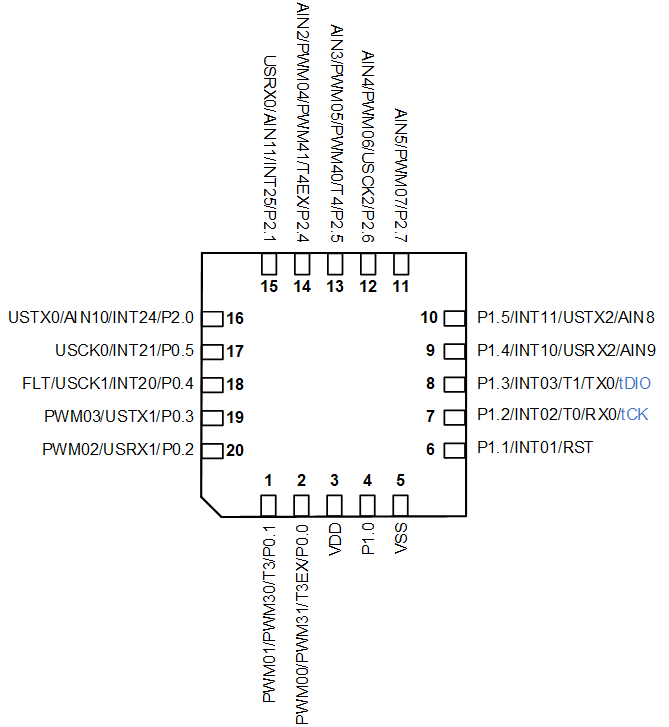

Digital Peripheral
l  GPIO: Up to 18 bidirectional independently controllable I/O ports

n  Independent setting of pull-up resistors

n  ALL GPIO source drive capacity is controlled by four levels

n  All IO ports have large sink current drive capability (50mA)

l  Built-in WDT, optional clock frequency division ratio
l  5 Timers: Timer0~4

n  Time2、Timer3 and Timer4 have Capture function

n  Time2、Timer3 and Timer4 each can provide two conventional PWM

l  4-channel 16-bit conventional PWM

n  Time2、Timer3 and Timer4 each can provide two conventional PWM

l  8-channel 16-bit multi-function PWM

n  Public cycle and the duty cycle can be set separately

n  Complementary PWM waveforms with dead zones can be output

n  Models in pin packages of 20PIN and above support PWM Fault Detection (FLT)

l  One independent UART communication port UART0
l  3 UART/SPI/TWI communication interfaces (USCI)

n  When USCI0 is set to SPI0, the driving capability of the pins corresponding to its signal port will be enhanced

l  Built-in CRC check module
l  Integrated with 16 * 16-bit hardware Multiplier-Divide Unit (MDU)



Analog Peripheral
l  9-channel 12-bit ADC

n  Build-in reference voltage of 2.048V, 1.024V and 2.4V

n  The ADC reference voltages is optional: VDD, internal 2.048V, internal 1.024V and 2.4V

n  1 internal channel can measure the voltage of the power supply

n   ADC conversion complete interruption can be set


Power Saving Mode
l  IDLE Mode: can be woken up by any interrupt
l  STOP Mode: can be woken up by INT0~2 Base Timer.
