Operating Conditions

l   Voltage Range: 2.0V~5.5V

l  Temperature Range: -40℃ ~ +105℃

ESD&EFT

l  ESD 6KV

l  EFT 4KV

Package

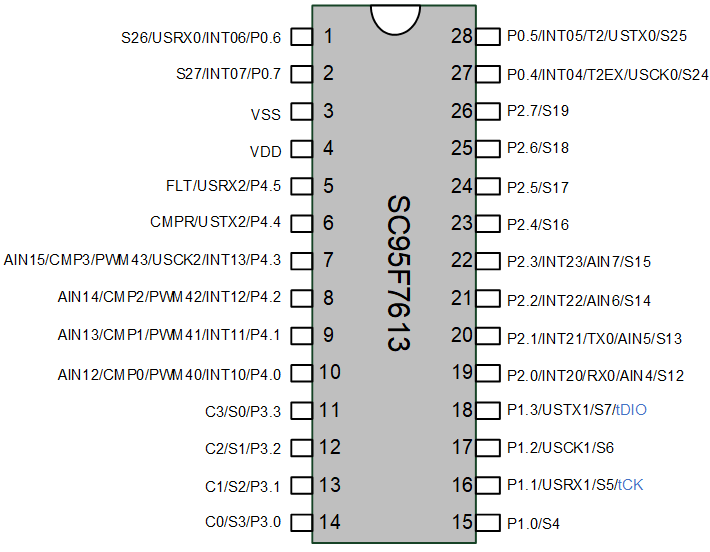

l  28 PIN: SOP28 / TSSOP28

CPU

l  Super-high-speed 1T 8051 core

l  The instruction set compatible with 8051

l  The execution speed is about twice that of other 1T 8051

l  Double data pointers (DPTRs)

Memories

l  64 Kbytes Flash ROM

n  Divided into 128 sectors

n  512 bytes per sector

n  Can be rewritten 100,000 times

n  The data written-in has more than 100-year preservation life in the ambient temperature of 25℃

l  IAP (In Application Programming): The area allowed IAP operation in Flash can be set to 1/2/4/64K by Code Option.

l  Encryption: APROM and LDROM can be encrypted to ensure that the program code cannot be read

l  BootLoader: Built-in 1 Kbytes LDROM

l  Unique ID: 96 bits unique ID memory

l  SRAM: Internal 256 bytes + external 4 Kbytes + PWM&LCD RAM 80 bytes

Flash Programming and Emulation

l   2-wire JTAG programming and emulation interface

l  Mass production programming: 64 Kbytes of Flash ROM programming and verification total time can be as low as 2s

Clock Source

l  Built-in high frequency 32 MHz oscillator (HRC)

n  The system clock frequency (f_SYS) of the IC can be selected and set by the programmer as: 32/16/8/4 MHz

n  Frequency Error:

u  Within ±1% @ -10 ~ 85℃

u  Within ±2% @ -40 ~ 105℃

n  The system clock can be automatically calibrated by 32.768 kHz external crystal oscillator, after calibration HRC accuracy can be infinitely close to the accuracy of external 32.768 kHz crystal oscillator.

l  Built-in low-frequency crystal oscillator circuit: 32.768k oscillator can be connected externally as a Base Timer clock source.

l  Built-in low-frequency 32 kHz oscillator (LRC): used as the clock source for Base Timer and WDT.

Low-voltage Reset (LVR)

l   4 options of reset voltage: 4.3/3.7/ 2.9/1.9V, the default value can be selected by the Code Option

Interrupts (INT)

l  Up to 16 interrupt sources including Timer 0~Timer 4, INT0~2, ADC, PWM, UART, USCI0~2, Base Timer, CMP

l  External interrupt INT0~2 contains 3 interrupt vectors, 16 interrupt ports. All can set up rising edge, falling edge, dual edge interrupt.

l  Two-level interrupt priority capability

Digital Peripheral

l  GPIO

n  Up to 26 bidirectional independently controllable I/O ports, independent setting of pull-up resistors

n  All I/O ports have large sink current drive capability (50mA)

l  Built-in WDT, optional clock frequency division ratio

l  5 Timers: Timer 0~4

l  4-channel 12-bit PWM

n  Can be set to independent mode or complementary mode: 8 channels of PWM in the independent mode, the duty cycle can be set separately

n  In complementary mode, four sets of complementary PWM waveforms with dead zones can be output simultaneously

n  The output waveform can be reversed and can be set to center-aligned or edge-aligned

n  Fault detection mechanism

l  One independent UART communication port UART0

l  Three UART/SPI/TWI communication interfaces (USCI)

l  Integrated with 16 * 16-bit hardware Multiplier-Divide Unit (MDU)

l  Built-in CRC check module

l  LCD/LED driver

n  Choose one of two LCD/LED drive functions, share registers and I/O ports

n  LED driver: 4 X 16 segments, LED segment port (P0~P3) source drive capability is selectable in four levels

n  LCD driver: 4 X 16 segments

Analog Peripheral

l  9-channel 12-bit high-speed ADC

n  1 MHz sampling clock

n  The ADC reference voltages is optional:

u  Internal 2.048V

u  Internal 1.024V

u  VDD

n  1 internal channel can measure the voltage of the power supply

l  1 Analog Comparator

n  4-channel input and 1-channel reference voltage input

n  16-level optional comparison voltage

Power Saving Mode

l  Normal Mode: current consumption is as low as 5.2mA (V_DD=5V, f_SYS=32 MHz)

l  IDLE Mode: current consumption is as low as 2.5mA (V_DD=5V), can be woken up by any interrupt

l  STOP Mode: can be woken up by INT0~2 and Base Timer.
